PVC profile/panel production line

All rights reserved:Established in 1982, TongDa Plastic Machinery Co., Ltd. Update time:2024-04-11 20:50:58

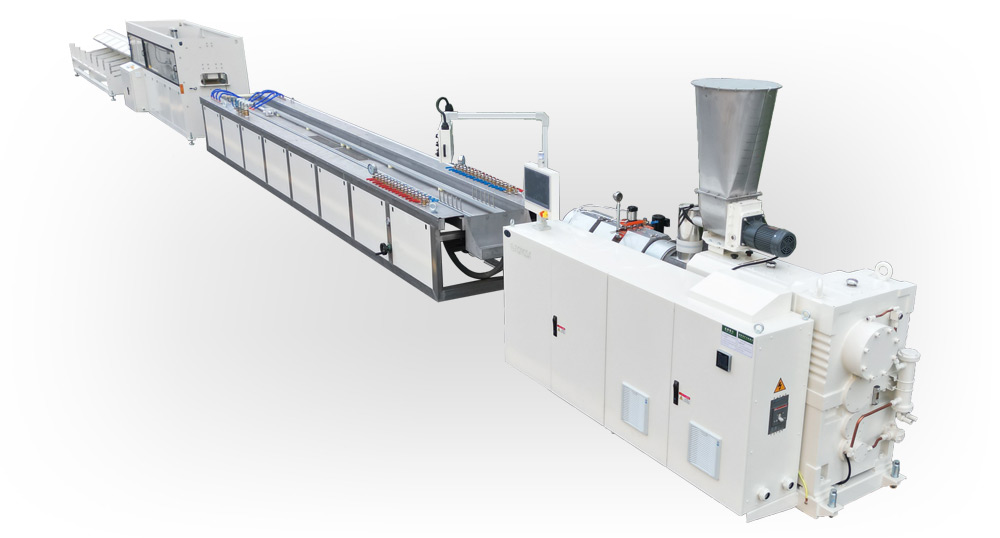

PVC profile/panel production line
Product details

Main Technical Parameter:

Model

Production specifications

(mm)

Output

(Kg/h)

MAX.Line Speed

(m/min)

Motor Power

(kw)

Line Lengt

(m)

SZ-56

10*10-50*50

200-250

12*2

30

16

GSSZ-80

200-1200

根据制品

根据制品

55/75

20

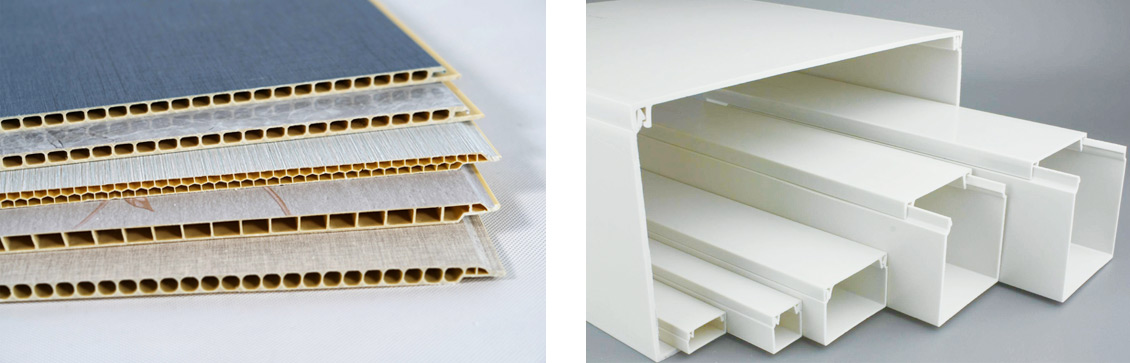

This line is used for making the PVC cable trunking, we equipped with the special designed screw to realize the better plasticizing and high output. The vacuum forming table can be adjusted in three direction, easy to regulate, so as to ensure the exact forming. By adopting the hot cutting, the cutting surface will be smooth.
